Face Lifting device photon therapy facial slimming vibration massager double chin V-line lifting belt honeycomb frequenc

Product name: RF RF beauty instrument

Product model: MSP01

Charging mode: Type-c

Battery type: 14500 three

Battery capacity: 2400MA/h

Charging voltage: 5V

Charging current: 580ma (max)

Charging time: about 4-5H

Input power: 2.9W (max)

Quiescent current: 75uA (max)

RF maximum output power: 7W (max)

RF voltage: 100V

RF frequency: 1M HZ

Maximum output power of MES: 1W (max)

EMS voltage: 0V-24V

EMS current/frequency: ＜ 40mA/700Hz

Vibration frequency: 8000 ± 10% r/min

Vibration current/voltage: 3.7V/100mA (Max.)

LED red green blue

Material: mainly composed of ABS+PC, ABS, PC, stainless steel, soft glue, etc

Process Radium carving process, pad printing, UV curing, chrome plating

Bare metal weight is about 172g

Bare machine size 183 * 52 * 54mm

One year warranty for after-sales service

Main functions of the product

This product has the following functions: EMS (micro current)+RF (radio frequency)+VR (vibration)+red blue light (phototherapy), which can lift, tighten, whiten and tender the skin;

Product uniqueness of MSP01:

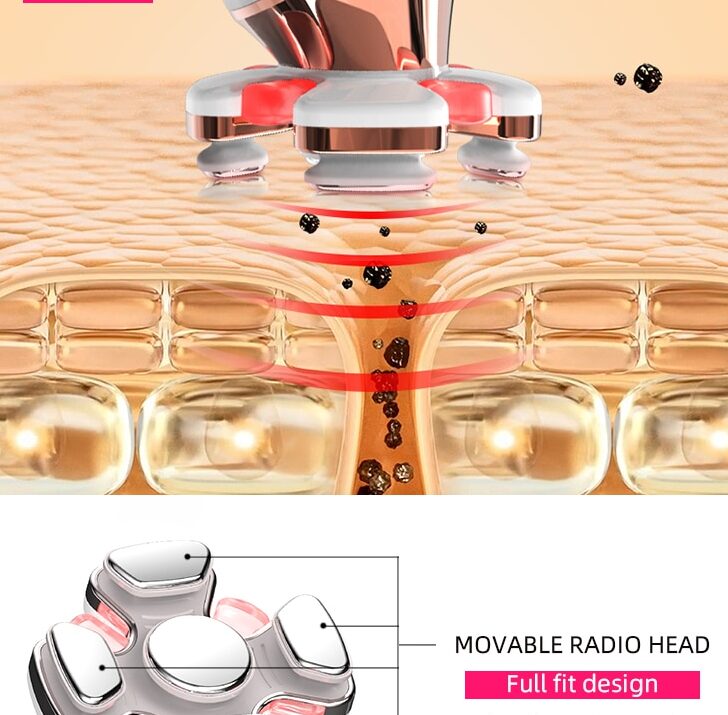

1: The world’s first independently movable electrode radio-frequency instrument fits the face surface freely and has a super sense of experience;

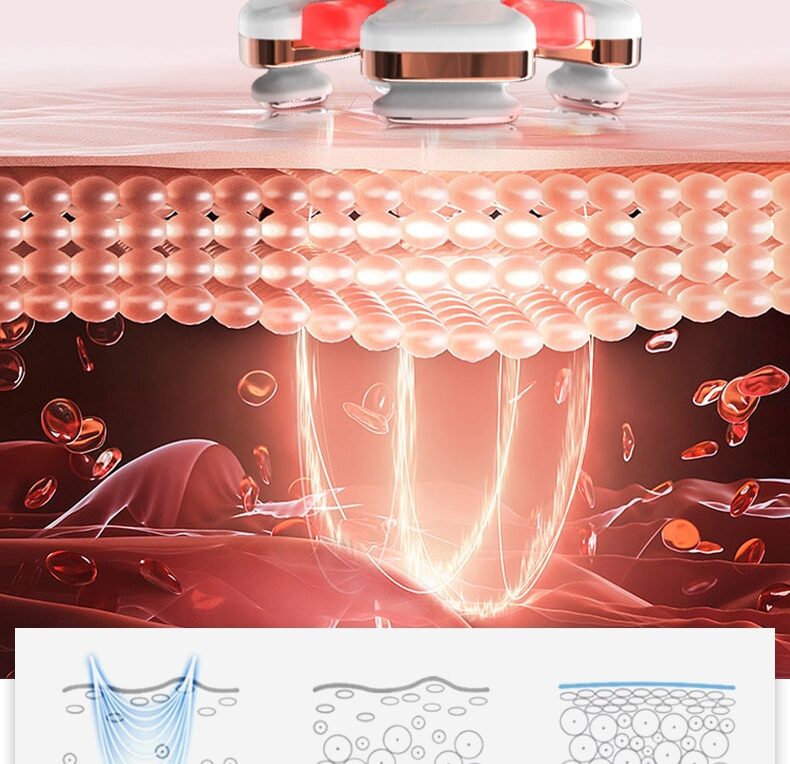

2: Three circuit switching modes ensure that the face is evenly heated, and the RF depth covers the depth of deep, medium and shallow dermis;

3: 316 medical grade stainless steel, which accelerates RF dermis heating, liquid silica gel has a good heat insulation effect, and the third gear can make the skin warm in one second;

4: The radio frequency head with a diameter of 50MM exceeds most similar products in the market, which can effectively save users’ time using the product;

5: 2400MA battery capacity, extra long standby;

6: IP67 waterproof design, easy to clean, and more use scenarios, such as bath;

7: The unique side lighting design makes the light soft and uniform, and the irradiation area increases.

Quality inspection report

FCC

RHOS

CE

IP65

Product operation description:

1. Cleaning: According to personal preferences, choose a suitable facial cleanser to clean the face and neck.

2. Wipe: after cleaning, use a soft towel to dry the face and leave excess water.

3. Smear: evenly smear gel on the face or keep the face moist.

4. Start the “RF” mode, and select the appropriate personal energy gear from low to high. RF radio frequency can penetrate the skin directly to the dermis, stimulate collagen regeneration, and smooth wrinkles.

5. Start “EMS” mode, exit “RF” mode and automatically close. From low to high, choose the energy gear that suits you personally. Use the special pulse stimulation of micro current to strengthen the movement of skin muscles and make their skin more compact.

6. Under “RF”/”EMS”, you can use “VR” massage mode at the same time, or you can choose not to use massage mode. Select according to your personal preference.

7. Under “RF”/”EMS” mode, red, blue and green light therapy mode can be used at the same time or no light therapy is used. Red light fades fine lines, blue light sterilizes, and green light is tender, smooth, bright and white.

8. (1) The whole body is waterproof, and the nursing head and body can be flushed with water.

(2) Wipe the nursing head with a clean soft cloth.

(3) Please wipe the residual gel in the gap of the electrode piece with a cotton swab or makeup remover.
