Gear Indicator Intruder Motorcycle Accessories

Package List:

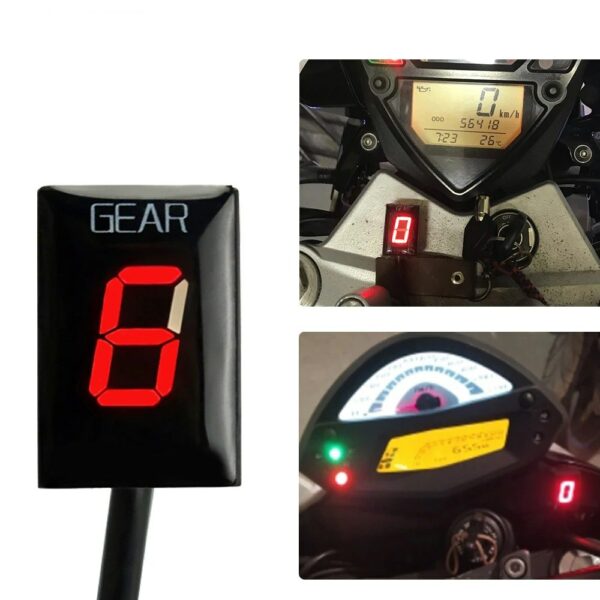

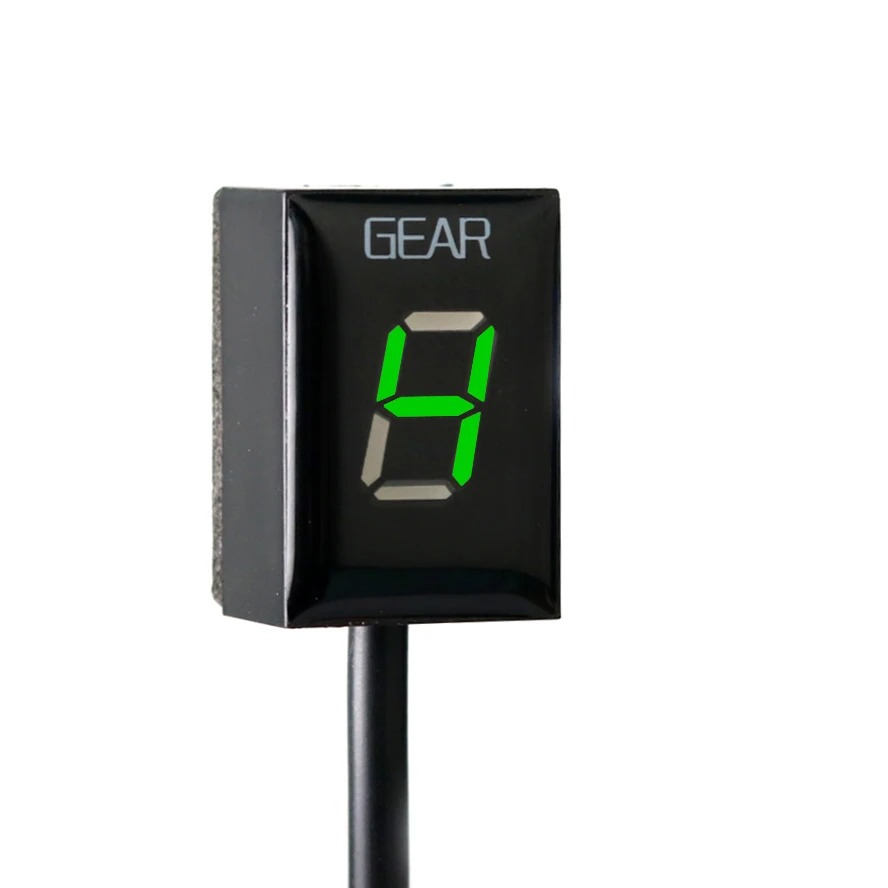

1 x Motorcycle Gear Indicator/Bracket(as shown in the picture)

▲Feature:
Shows current gear number
Indicates current gear from 1 to max of 6. as well as a neutral indicator.
Auto programming
Compatible with all motorbikes,four wheeler,bikes etc. will fit anything with a shift lever
Detects the current gear faster than other gear indicators that use speedometer/tachometer signal.
Display can be mounted anywhere

▲Foreword:
Congratulations on your purchase of a gear position indicator. is the most advanced gear position indicator on the market today. This product will fit all For Suzuki fuel injected (FI)motorcycles which have on-board Diagnostic System connector.This connector is referred as “Mode select switch coupler” in the For Suzuki manuals. Unlike other gear indicators available for your bike,this product connects to the diagnostic connector. It makes the installation very simple.The unit reads data directly from the ECM, offering faster and more reliable readings than competitive products.The unit is fully automatic,there are no buttons and no “programming wire”, The display will indicate all gears correctly when ignition is On,side stand is UP and the engine stop switch is in RUN position.

▲Installation:
Find the WHITE,6-pole male diagnostic connector,usually near the ECM box.It may have a black cap,or “dummy” female plug (without wires) attached to it.For GSF650 Bandit/For GSF1250;under right side frame cover, For DL650 ABS model;behind right side fuel tank cover , For VL1500/For Boulevard C90/For Intruder C1500;behind left frame head cover,Other models;under seat (rider or pillion) Remove the black cap or dummy female plug,and connect the plug.Route the cable to the mounting location.Peel off the green plastic from the back of the unit,and mount the display.Secure the cable with the cable ties supplied.The unit is fully functional after installation.there is no need to setup. Troubleshooting.
Disconnect the connector and check whether the pins are broken,bent or pushed out of position.Reconnect the plug, and make sure that all connections are good and the connector is fully seated.Make sure the ignition is ON,side stand is UP and engine stop switch is in RUN position when you test the gear position indicator.If some gears are not indicated properly,most likely the Gear Position switch is defective,modified,or a box is installed.If the indicated gears are correct except under hard acceleration or braking,there is interference in the bike is wiring and the ECM receives incorrect gear position values from the sensor.This model indicates the gear position as known by the ECM.
